CNC Plastic Sheet Punching Machine

Product Overview

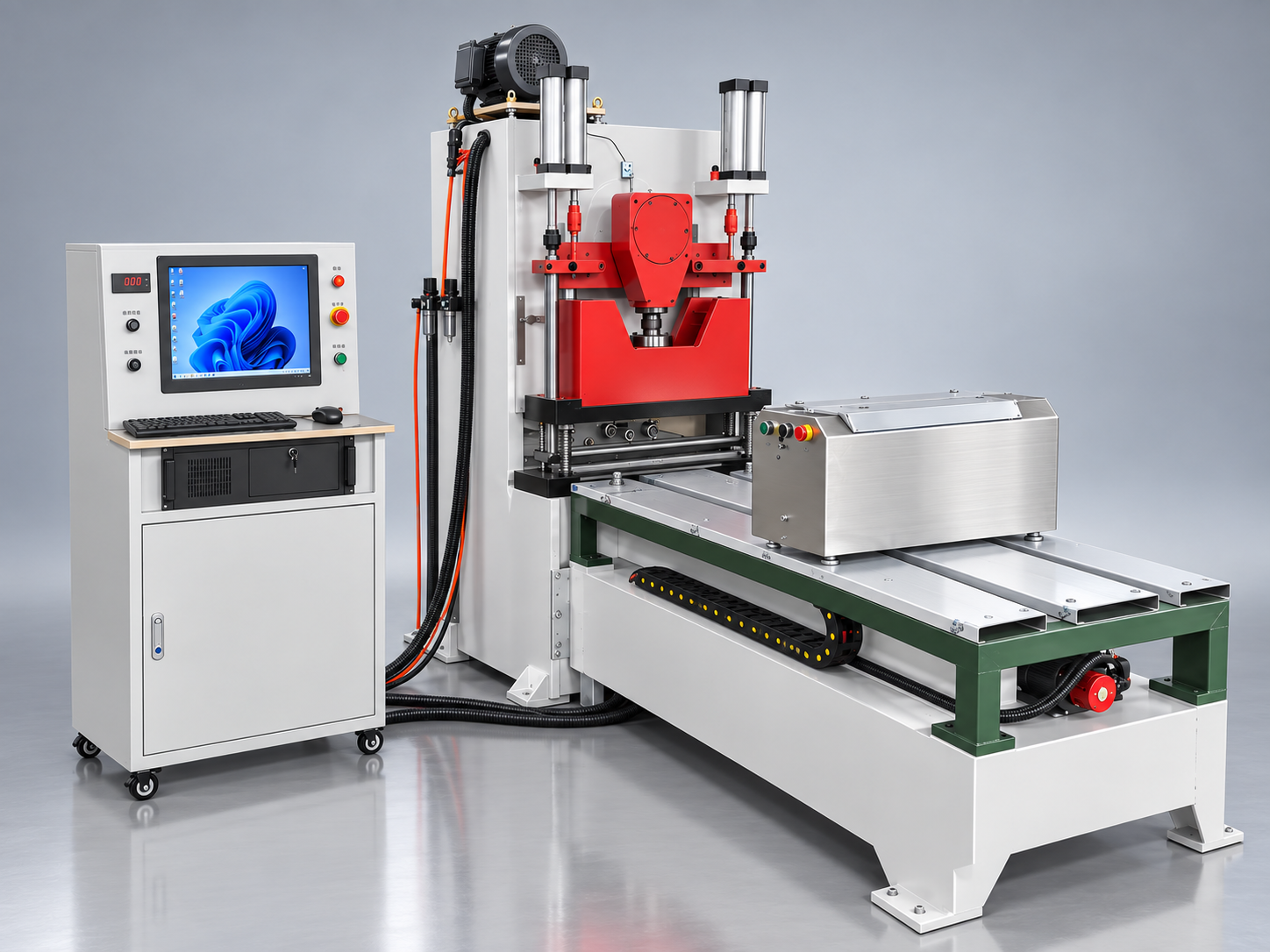

The URIDGE CNC Plastic Sheet Punching Machine is a single-sheet punching system for perforating plastic sheets, primarily PCL orthopedic sheets. A sheet is loaded into the machine, positioned automatically by a CNC feeding system and X-Y servo axes, and punched by a 25T gantry punching press according to a programmed hole pattern. Punch tooling and hole diameter can be customized according to the required layout.

PCL Orthopedic Sheet Punching

PCL sheets can be punched with programmed hole patterns using CNC feeding and X-Y servo positioning. The punching process creates the required perforated structure in the sheet. This describes the machine processing application only.

Other Plastic Sheet Applications

PCL and other plastic sheets suitable for punching can be processed. Punching can be used to create ventilation or filtration openings and to reduce the weight of a sheet by removing material in selected areas.

Equipment Configuration

• 25T Gantry Punching Press — 1 set
• Microcomputer Control Cabinet — 1 set
• CNC Feeding Machine — 1 set
• Punching Die — 1 set

CNC / X-Y Servo Positioning

The sheet is positioned automatically in the X and Y directions by servo-driven axes according to the programmed punching layout, working with the CNC feeding machine.

Punching Force

The machine uses a 25T gantry punching press with a punching force of 250 kN.

Punching Speed

Punching speed is 80–120 strokes/min. Actual speed varies with hole pattern, sheet layout, material and tooling.

Maximum Workpiece Size

Maximum workpiece size is 1100 × 620 mm (length × width). This is the maximum single-sheet workpiece size.

Maximum Sheet Thickness

Maximum sheet thickness: up to 4.2 mm.

Punch Tooling and Hole Diameter

The referenced project was supplied with punch pins from φ1.3 mm to φ3.3 mm. Other punch diameters can be customized according to the required hole pattern and application. Punch tooling is selected according to the required hole diameter and punching layout.

How the CNC Punching Process Works

1. A single plastic sheet is placed into the machine.
2. The CNC feeding system positions the sheet.
3. X-Y servo axes move the workpiece according to the programmed hole layout.
4. The gantry punching press performs the punching operation.
5. The process repeats until the programmed hole pattern is completed.

This is single-sheet programmed punching, not continuous roll punching.

Reference Technical Configuration

Reference Tooling Configuration

The following punch pins and bottom die plates were supplied for the referenced project.

These quantities are specific to the referenced project and are not a fixed standard accessory package. Other punch diameters can be customized.

Frequently Asked Questions

What is the CNC plastic sheet punching machine used for?

It punches programmed hole patterns into single plastic sheets, primarily PCL orthopedic sheets and other suitable plastic sheets.

Can it punch PCL orthopedic sheets?

Yes. PCL sheets can be punched with programmed hole patterns using CNC feeding and X-Y servo positioning.

What is the maximum sheet thickness?

Up to 4.2 mm.

What is the maximum workpiece size?

1100 × 620 mm.

How does the X-Y servo positioning system work?

Servo-driven X and Y axes move the sheet to programmed positions before each punch.

What is the punching speed?

80–120 strokes/min, depending on hole pattern, layout, material and tooling.

What punching force does the machine use?

250 kN (25T gantry press).

What punch diameters are available?

The referenced project used punch pins from φ1.3 mm to φ3.3 mm.

Can the punch diameter be customized?

Yes. Other punch diameters can be customized according to the required hole pattern and application.

Is this a continuous online punching machine?

No. It is a single-sheet CNC programmed punching machine, not a roll-to-roll inline system.

Tell Us About Your Plastic Sheet Punching Application

To configure a suitable machine, please send us:

• Plastic material
• Application
• Sheet length
• Sheet width
• Sheet thickness
• Required hole diameter
• Hole spacing
• Hole layout / drawing
• Required holes per sheet
• Production requirement
• Voltage and frequency

For PCL orthopedic sheet projects, please also provide the sheet drawing and hole layout drawing. URIDGE will configure the punching tooling and CNC punching layout according to the sheet dimensions and required hole pattern. You can request a quote or use the WhatsApp contact on this page to start.

Warranty

Warranty: 1 year.
