Plastic Profile Extrusion Lines
URIDGE designs and builds plastic profile extrusion lines for rigid and flexible profiles in materials such as PVC, PE, PP, ABS, PA and WPC, serving construction, electrical, automotive and industrial applications. Each line is configured to your material, profile cross-section, finished size, target output and downstream requirements.
Overview
A plastic profile extrusion line forms continuous profiles by melting plastic material, pushing it through a custom profile die, and then sizing, cooling, pulling and cutting it to shape. A typical line runs: extruder, custom profile die, vacuum calibration, cooling, haul-off, cutting, and stacking or coiling.
The profile cross-section is defined mainly by the die and tooling, so each profile geometry uses its own tooling design. Different materials and end uses call for different line configurations; URIDGE lines are built around material compatibility, material selection and changeover for PVC, PE, PP, ABS, PA and WPC.
Our Plastic Profile Extrusion Solutions
Multi-Material Plastic Profile Extrusion Line
A profile extrusion line for rigid and flexible plastic and WPC profiles, tooled to your cross-section.
Best for: makers of construction, electrical, automotive and industrial profiles across PVC, PE, PP, ABS, PA or WPC.
Materials: PVC, PE, PP, ABS, PA, WPC
View profile line

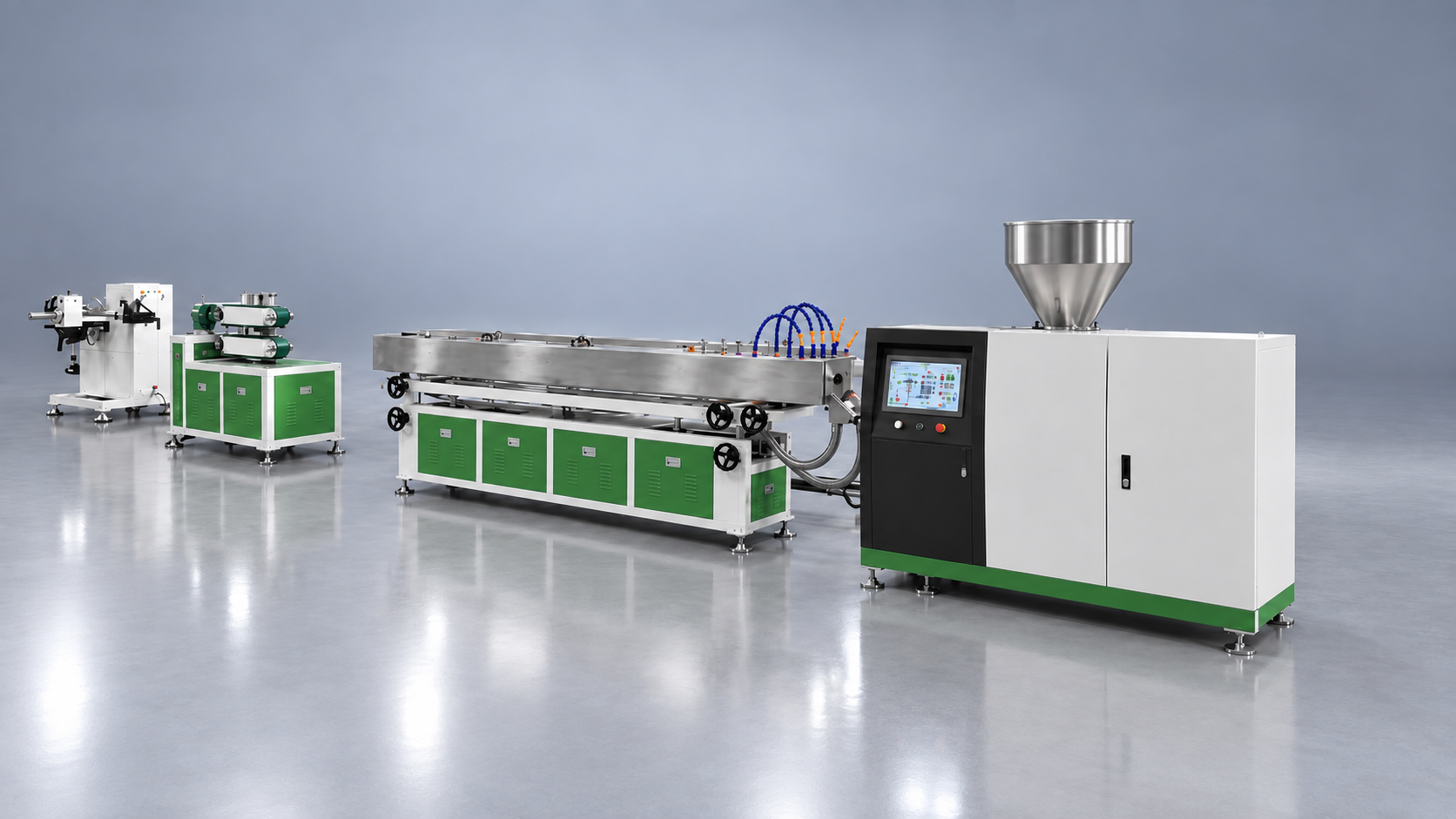

Flexible PVC Sealing Strip Extrusion Line
A dedicated extrusion line for flexible PVC sealing strips, with a custom die and downstream winding configured to the profile drawing.
Best for: PVC door, window and furniture profile manufacturers producing customized flexible sealing strips.
Materials: Flexible PVC
View flexible PVC sealing strip lineMaterials
URIDGE profile extrusion lines are configured for the following materials: PVC, PE, PP, ABS, PA and WPC (wood-plastic composite).
Applications
Typical profiles produced on these lines include:
- Window and door profiles
- Conduit and electrical profiles
- Decorative profiles
- Siding and wall profiles
- WPC decking, fencing and outdoor profiles
- Automotive trim, seals and interior profiles
- Industrial profiles
- Appliance components
- Protective profiles and liners
Extruder Configuration
Extruder type is selected according to the material and profile requirements. URIDGE profile lines can be built with a single-screw extruder, a conical twin-screw extruder, or a parallel twin-screw extruder.
How We Configure a Profile Extrusion Line
URIDGE proposes a profile line from your requirements rather than a fixed machine specification. Useful details to share include:
- Raw material
- Profile drawing or cross-section
- Finished dimensions
- Material type and changeover requirements
- Target output
- Surface requirement
- Cooling and calibration requirement
- Cutting length
- Downstream handling
- Factory layout
- Electrical standard
- Automation requirement
Why Choose URIDGE
URIDGE has been manufacturing plastic extrusion and recycling equipment since 2008, with more than 18 years of experience, more than 500 customers and exports to more than 50 countries. Each line is customized through engineering, manufacturing, assembly, testing, installation, commissioning and global after-sales support.
Planning a plastic profile extrusion line?
Tell us your material, profile drawing, finished dimensions and target output — URIDGE will propose the right profile extrusion configuration.
