Dual-Station Turret Winder for Film & Sheet Rolls

Product Overview

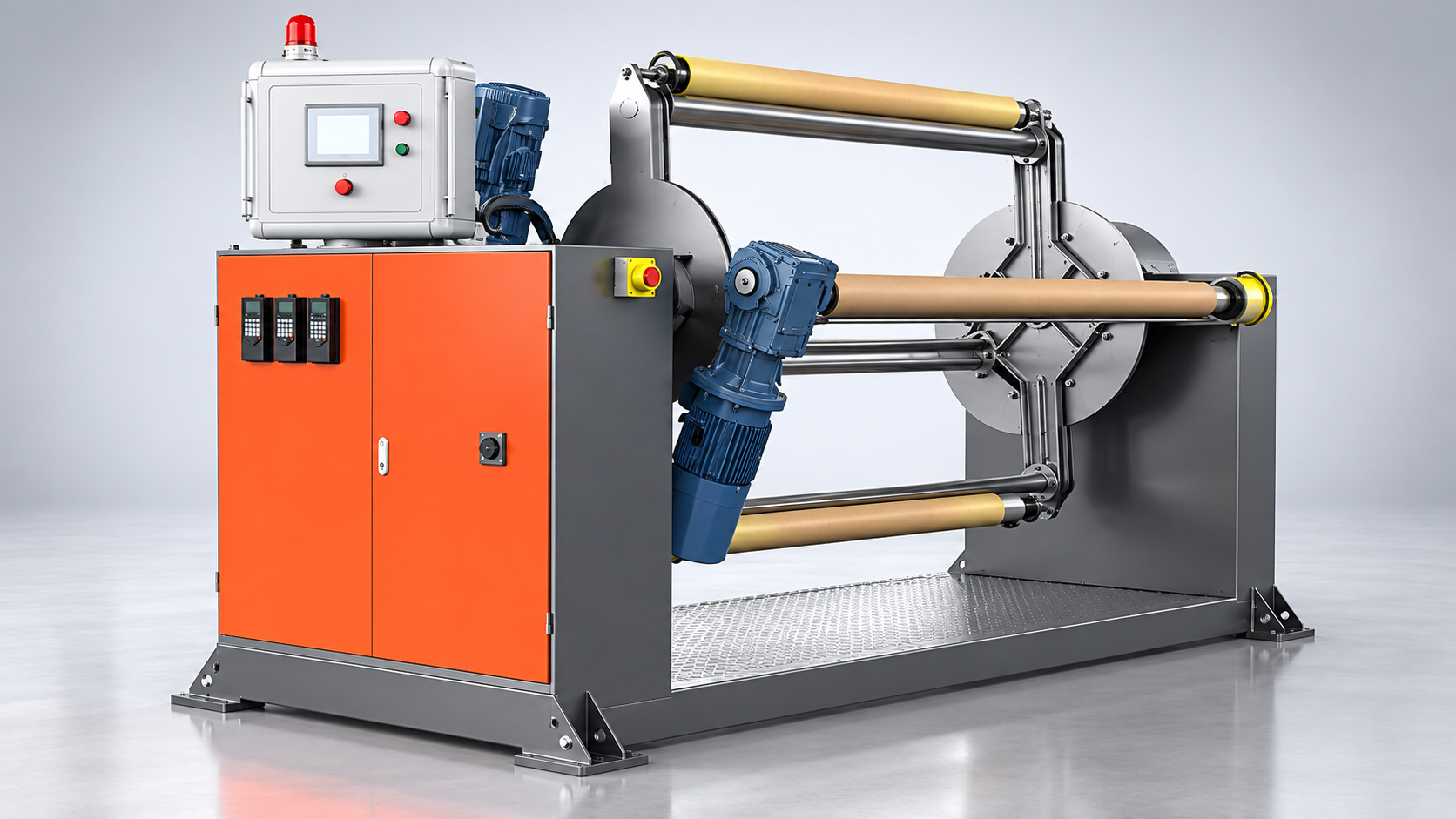

The URIDGE Dual-Station Turret Winder is designed for winding film, sheet and other roll materials, primarily as downstream equipment for extrusion lines. Its dual-station turret allows an alternate winding position to be prepared while production continues. Each winding shaft is independently driven.

In the standard configuration, material cutting and roll transfer are performed manually, while automatic cutting can be customized for projects that require it. The machine can also be configured as part of a standalone unwind-and-rewind system.

Applications

The winder is intended for film, sheet and other roll materials, primarily as downstream winding equipment for extrusion lines.

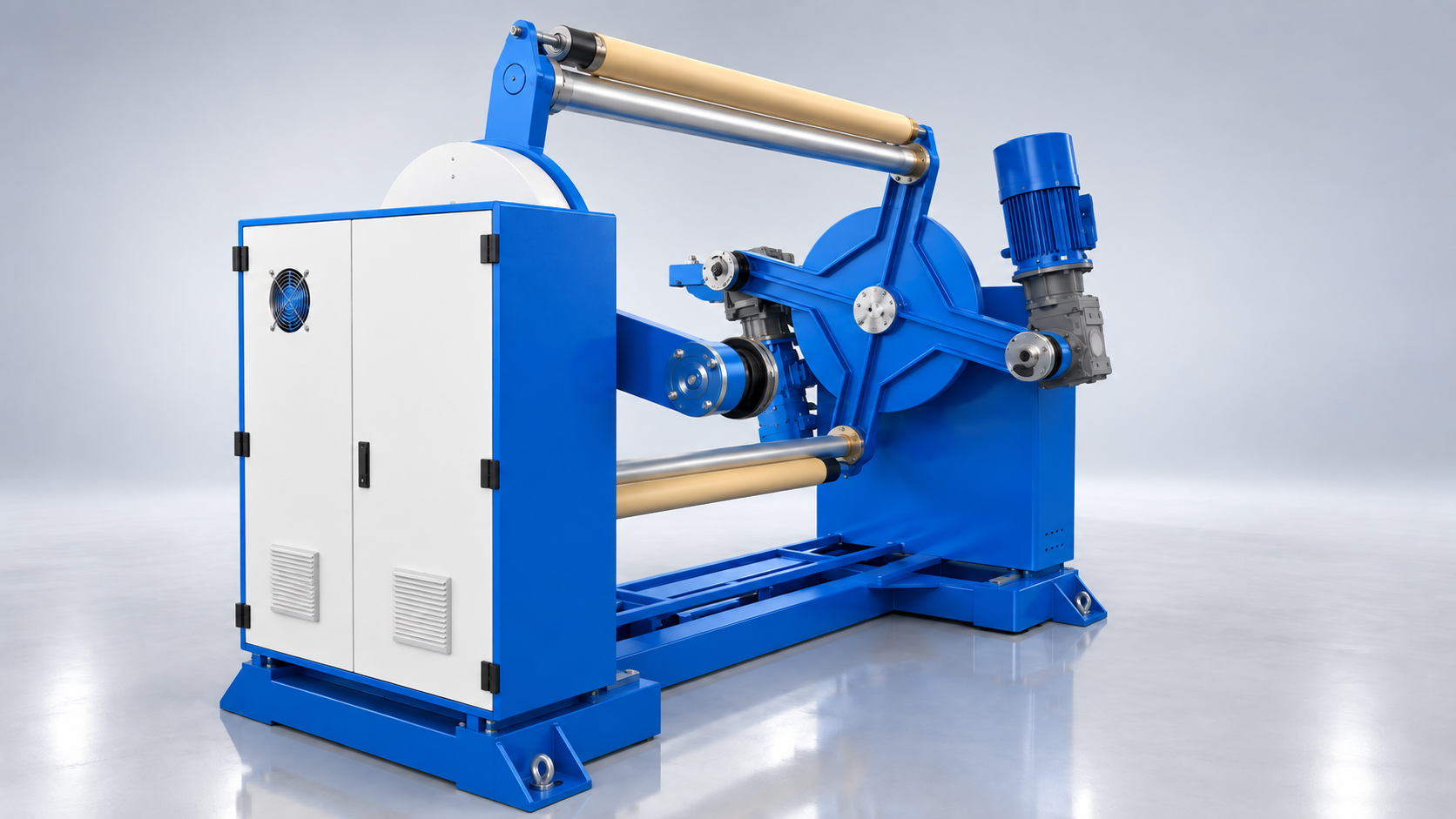

Dual-Station Turret Design

The dual-station turret provides two winding positions. The turret allows one winding position to be prepared while the other is operating, and turret rotation is electric.

Roll Changeover Process

The dual-station turret allows the upstream extrusion line to continue running during roll changeover. In the standard configuration, web cutting and transfer to the empty winding position are performed manually.

Manual Cutting and Optional Automatic Cutting

Web cutting is manual as standard. Automatic cutting is available only as a customized configuration. The machine does not include automatic taping or automatic splicing.

Independent Winding Drives

Each winding shaft is independently driven, allowing winding speed and torque to be controlled according to the material and roll requirement.

Torque Motor / Variable-Frequency Motor Options

Drive motors use a torque motor or variable-frequency motor configuration. Motor power is selected according to roll width, roll diameter, roll weight, line speed and winding requirements.

Optional Tension Control

Optional tension control can be configured using a tension controller to regulate winding speed and torque. For variable-frequency motor configurations, torque-control operation can be used according to the winding requirement.

Siemens PLC and HMI Control

The winder uses Siemens PLC and HMI control for machine operation and parameter setting.

Electric Turret Rotation

Turret rotation is electric.

Forward / Reverse Winding

Forward and reverse winding are supported.

Standalone Unwind and Rewind Configuration

For projects that require rewinding rather than direct extrusion-line winding, URIDGE can configure a standalone system with one unwinder and one rewinder.

Custom Configuration Range

Notes:

• The turret winder is customized according to roll width, roll diameter, roll weight, line speed, material and winding requirements.
• Maximum roll diameter, roll width, roll weight and line speed represent configurable project limits and do not mean every machine is built to all maximum values simultaneously.
• In the standard configuration, material cutting and roll transfer are performed manually.
• Automatic cutting can be customized when required.
• Tension control is optional and configured according to the material and winding process.
• Motor power and machine dimensions are determined according to the final project configuration.
• Standard electrical supply is 380 V / 50 Hz; other electrical specifications can be configured for the project.

Frequently Asked Questions

What materials can the dual-station turret winder handle?

Film, sheet and other roll materials.

Can the extrusion line keep running during roll changeover?

Yes. The dual-station turret allows the upstream line to continue running during changeover.

Is web cutting automatic?

No. In the standard configuration, web cutting and roll transfer are performed manually.

Can automatic cutting be added?

Yes. Automatic cutting can be customized.

What is the maximum roll diameter?

Up to Ø1200 mm according to project configuration.

What is the maximum roll width and roll weight?

Up to 2500 mm width and up to 800 kg depending on configuration.

What core sizes are available?

3-inch and 6-inch core / air-shaft configurations.

What is the maximum winding speed?

Up to 120 m/min depending on material and machine configuration.

Is tension control available?

Yes, as an optional / customizable configuration using a tension controller.

Can the machine be configured as a standalone unwinding and rewinding system?

Yes. A one-unwinder + one-rewinder system can be configured for projects that require separate rewinding.

Tell Us About Your Winding Application

To configure a suitable turret winder, please send us:

• Material
• Film / sheet / roll type
• Product width
• Maximum roll diameter
• Maximum roll weight
• Core size
• Required line speed
• Required winding direction
• Upstream equipment
• Tension-control requirement
• Automatic-cutting requirement
• Power supply
• Factory layout

URIDGE will configure the turret winder according to the roll dimensions, line speed, material and winding process. You can request a quote or use the WhatsApp contact on this page to start.

Warranty

Warranty: 1 year.
